WirelessWireless Standards
IEEE 802.11b/g/n

Frequency
2.4-2.4835GHz

WiFi Speeds
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity
• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER

Transmission Power Wireless Security WPA-PSK / WPA2-PSK
Wireless Functions Enable/Disable Wireless Radio, WDS Bridging
SoftwareWAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management Access Control, Local Management, Remote Management

DHCP Server
Port Forwarding Virtual Server, UPnP, DMZ

Firewall Security IP and MAC Address Binding
Protocols IPv4, IPv6
Guest Network 2.4GHz Guest Network

HardwareDimensions 114 mm × 94 mm × 26 mm
Button Reset Button
External Power Supply 5V/0.6A

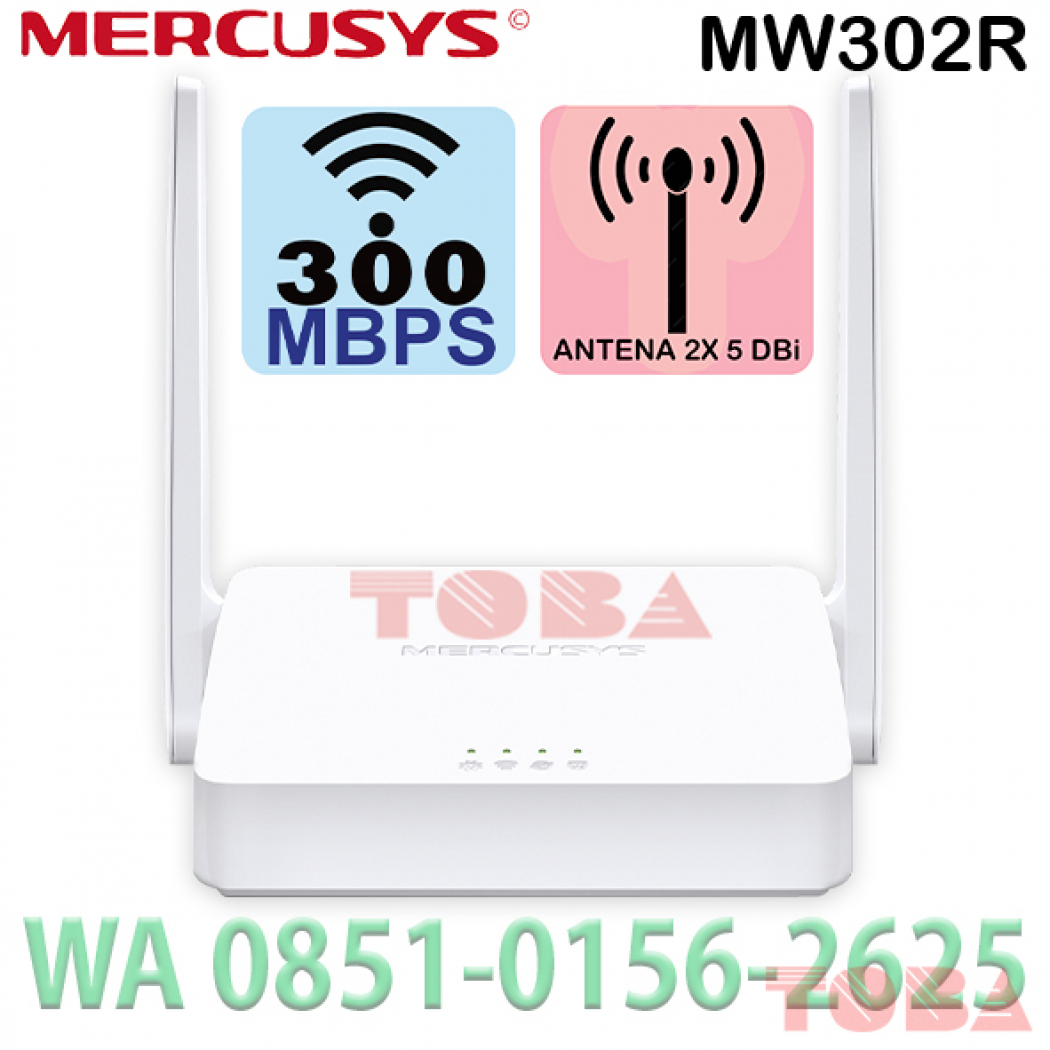

Antenna Type 2 * 5dBi

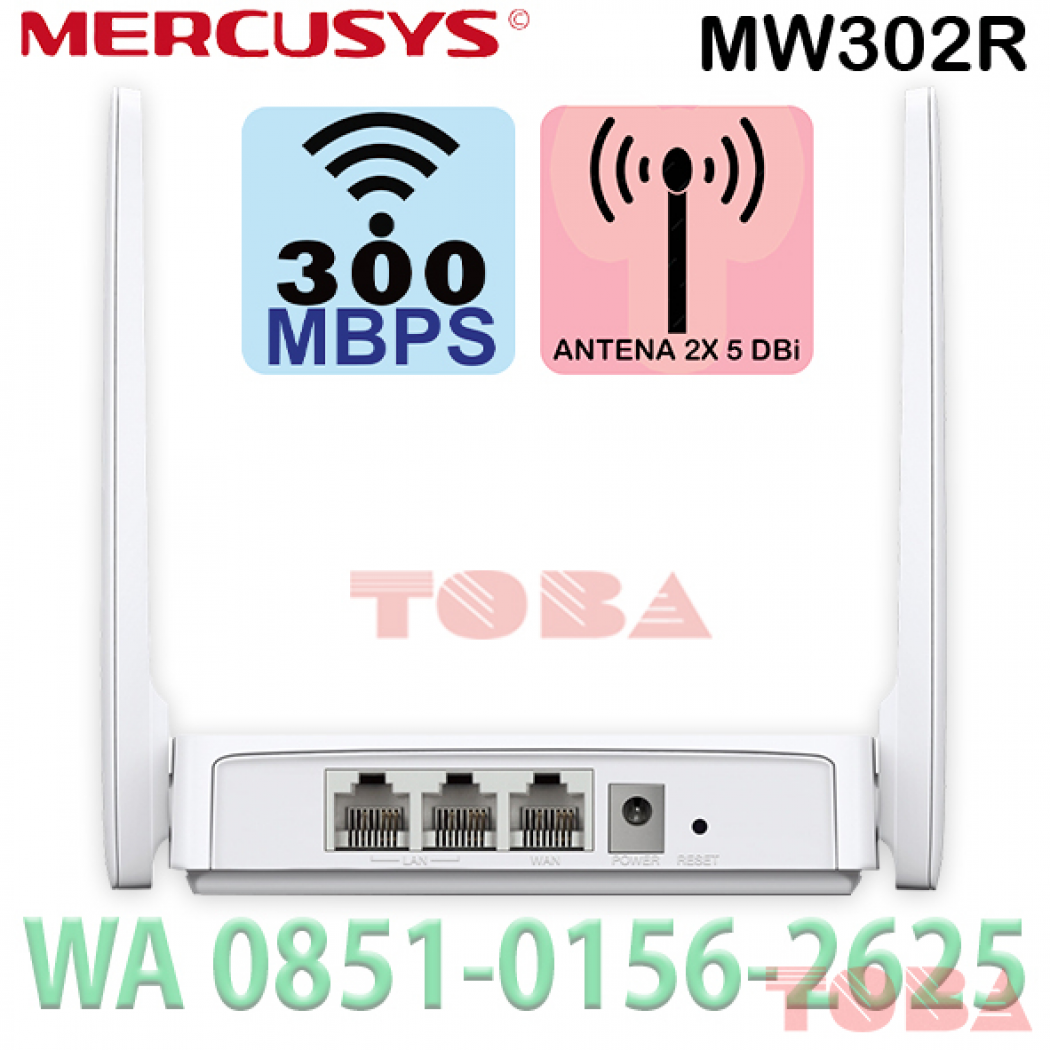

Ethernet Ports :
2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port

OthersPackage Contents
300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable

Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
